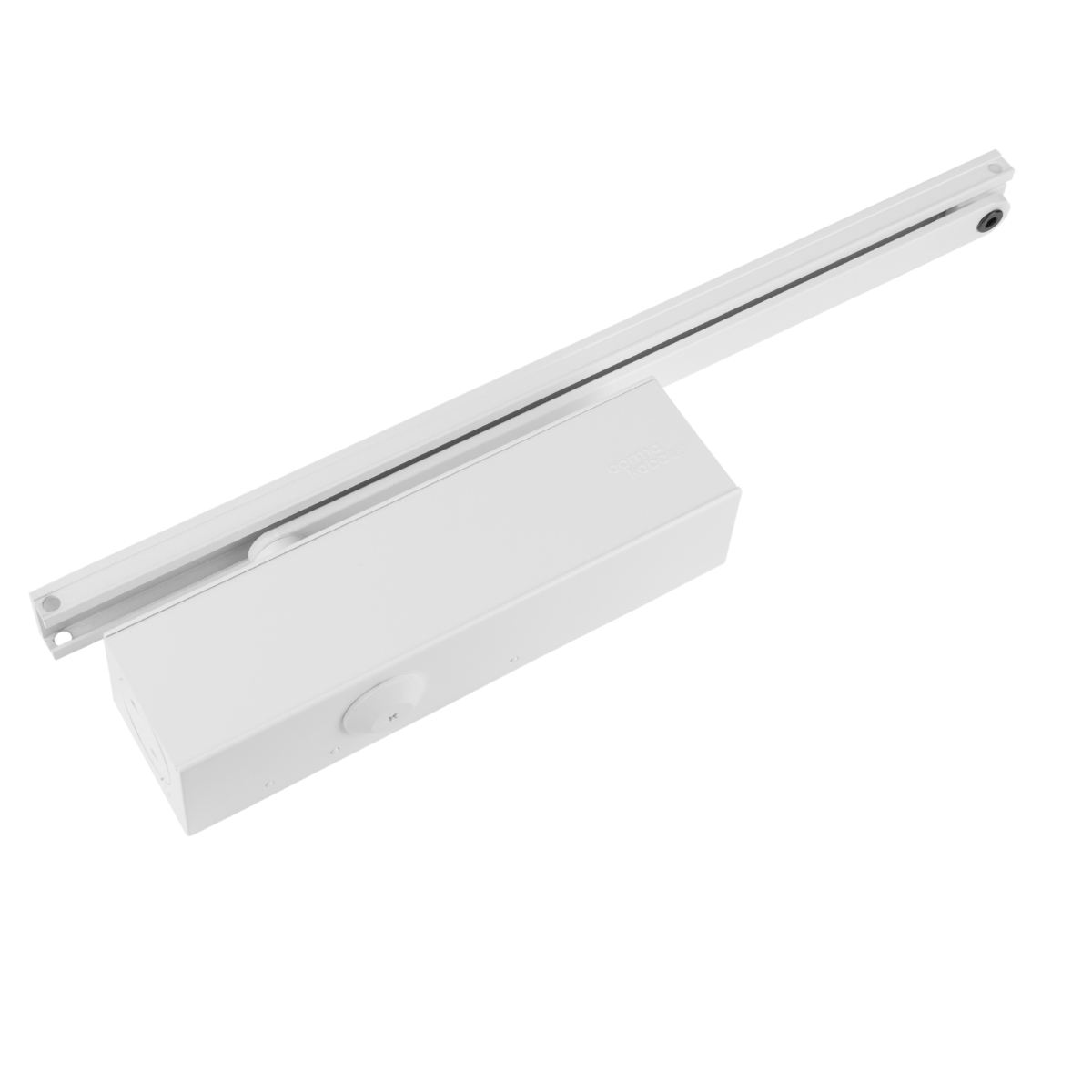

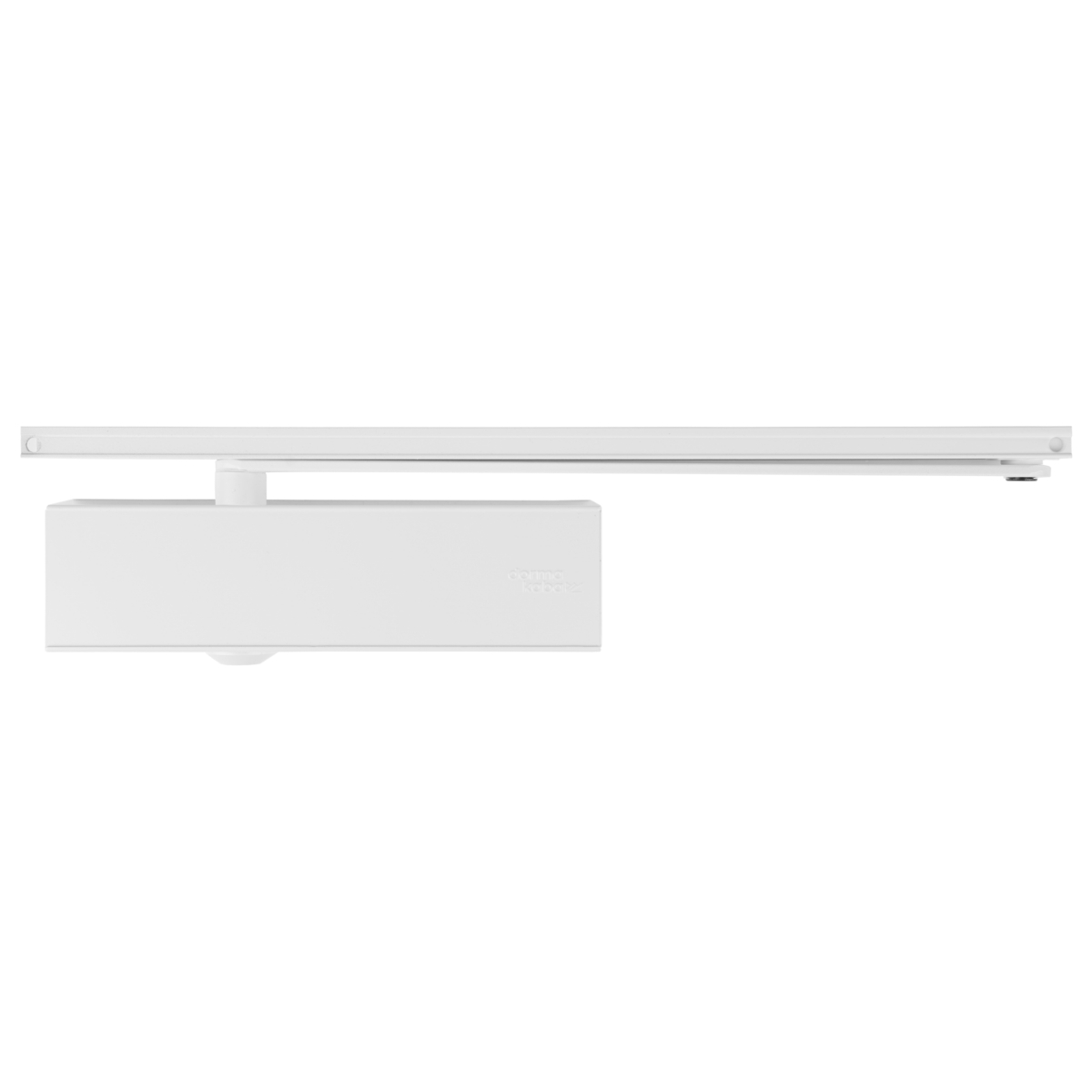

TS Match is a slide channel closer with backcheck. It is recommended for use on exterior doors.
Усилие закрывания двери—EN 3-4
- EN 3-4
- EN 3-5
Версия монтажа—B
- B
- G
Цвет—Белый
Артикул:
3700003310711
BGN186.80*
95,51 €
95,51 €
Why choose the TS Match door closer?
Suitable for use on interior and exterior doors.
The closer is available in 2 versions:
- Mounting version B – suitable for installing the closer body on the door leaf on the hinge side, or on the door frame on the side opposite the hinges;
- Mounting version G – suitable for installing the closer body on the door leaf on the side opposite the hinges, or on the door frame on the hinge side.
Thanks to its backcheck (BC) function, the TS Match is a perfect match for exterior doors and doors with high foot traffic.
Smoothly adjustable closing force in two ranges provides user-friendly door operation.
The modern, elegant design of the closer will accentuate the overall style of your interior.
The slide channel is included.
Four color options available: gray, white, black, and dark brown.
Manufacturer's warranty: 2 years.
Данные и характеристики | ||
---|---|---|
Регулируемое усилие закрытия двери | Size |
|
Стандартные двери | ≤ 1250 мм | |
Фасадные двери, открывание наружу | ≤ 1250 мм | |
Противопожарные и противодымные двери | ≤ 1250 мм | |
Универсальность для левых и правых дверей | ||
Тип рычага | Скользящий канал | |
Регулировка скорости закрывания с помощью клапана | 180°–0° | |
Регулировка скорости конечного прижима с помощью клапана | 7°–0° | |
Регулировка амортизатора открывания с помощью клапана | ||
Вес брутто, кг | 2,285 | |

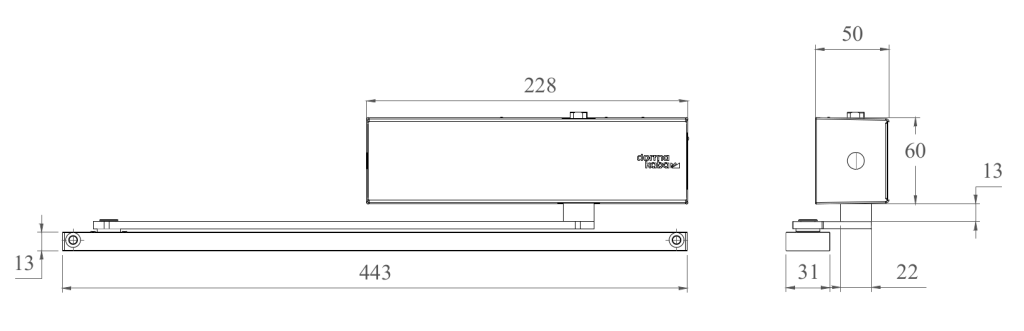

Размеры тела доводчика без скользящего канала, мм |
Длина Глубина Высота |
228 50 60 |
Сертифицирован по ГОСТ Р 56177-2014, EN 1154 / CE | ||
CE маркировка для строительных материалов | ||
Да / – Нет / Дополнительная опция |

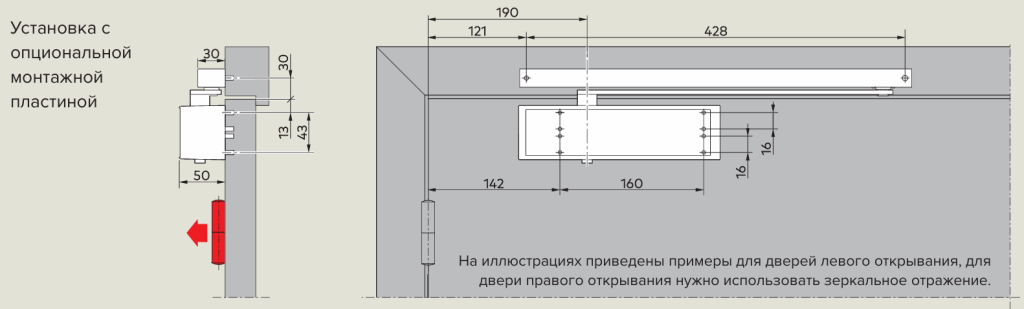

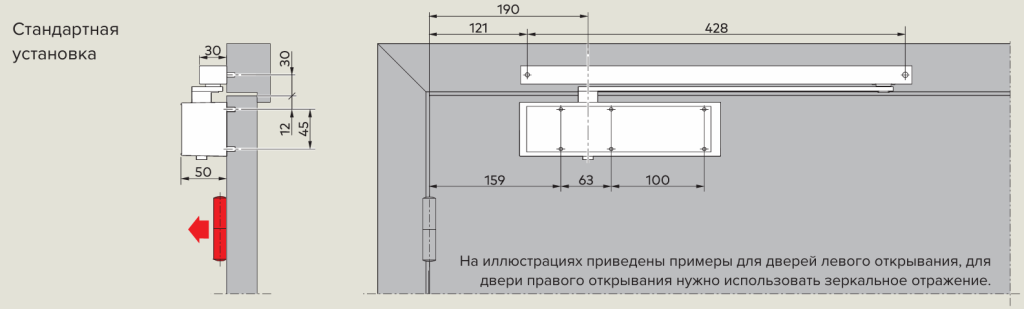

Монтаж на дверном полотне со стороны петель

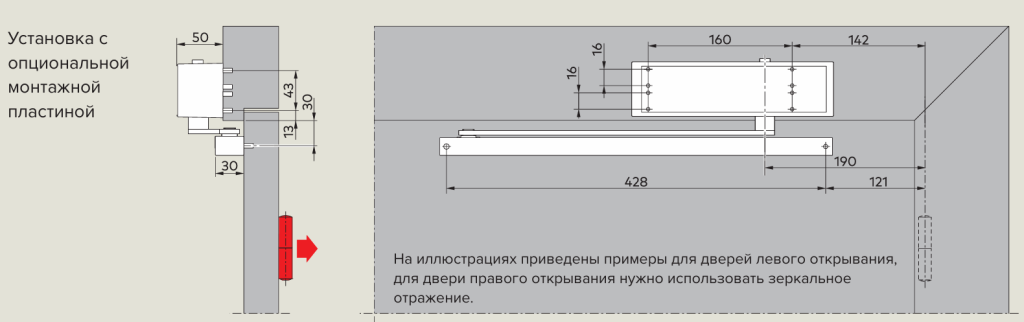

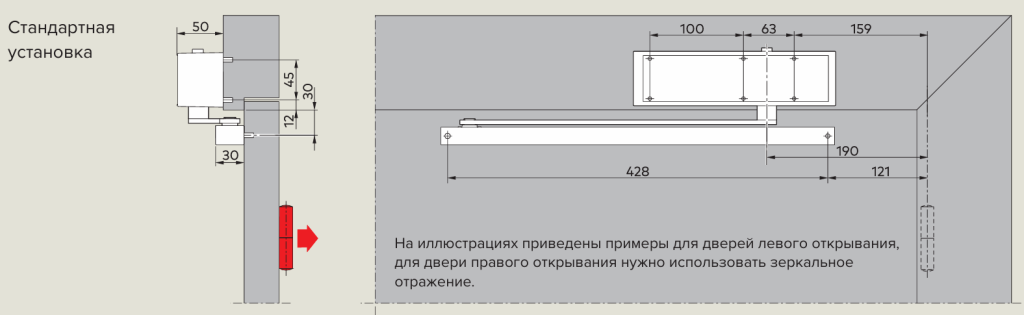

Монтаж на дверной коробке со стороны, противоположной петлям
